Gaomi Xiangming Forging Machine Tool Co., Ltd. is a professional manufacturer of forging machine tools. It has a good production environment and a professional team of talents, strong technical force, perfect testing methods and advanced processing equipment. The company is mainly engaged in the development, research and production of forging machine tools.

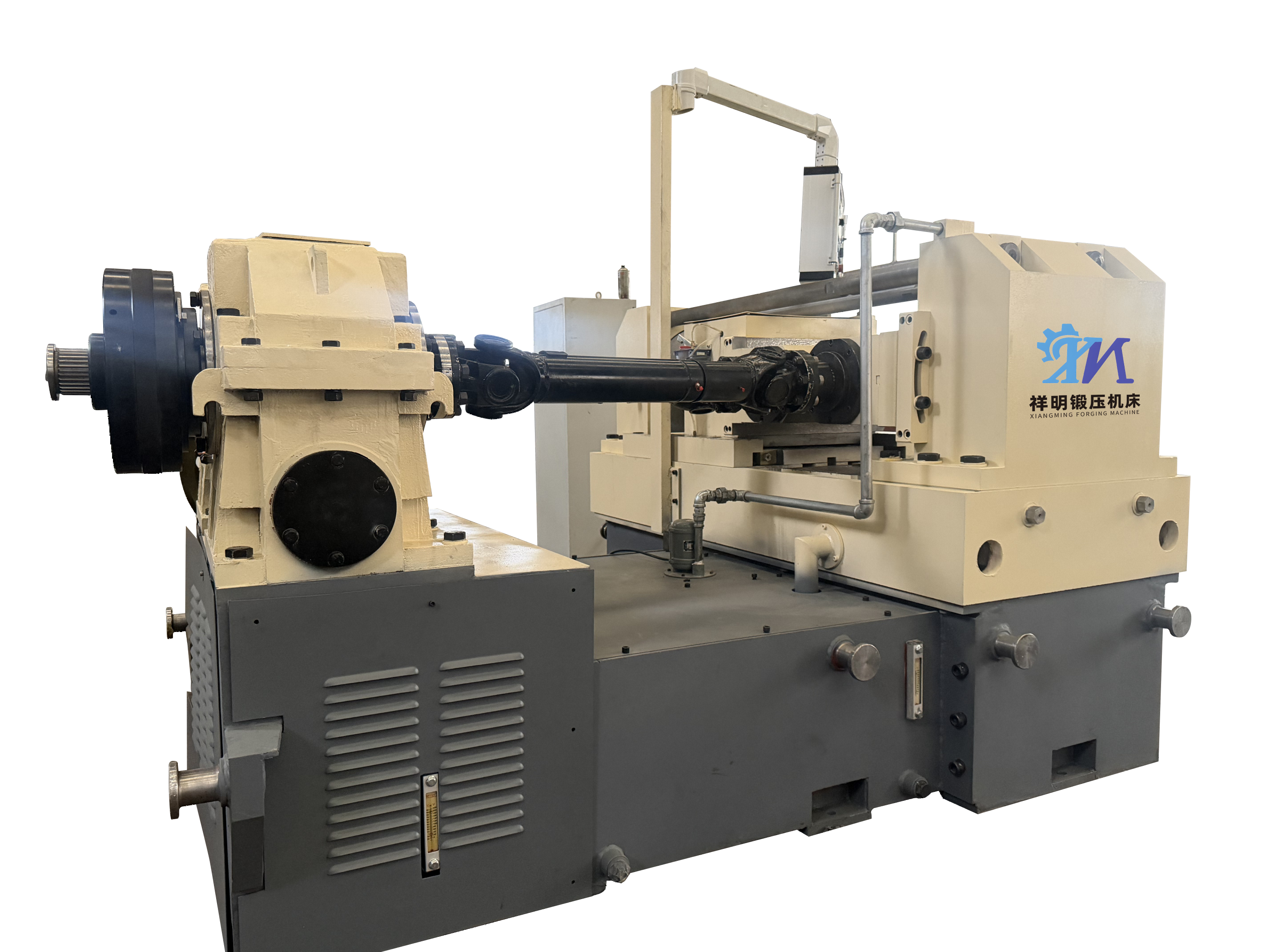

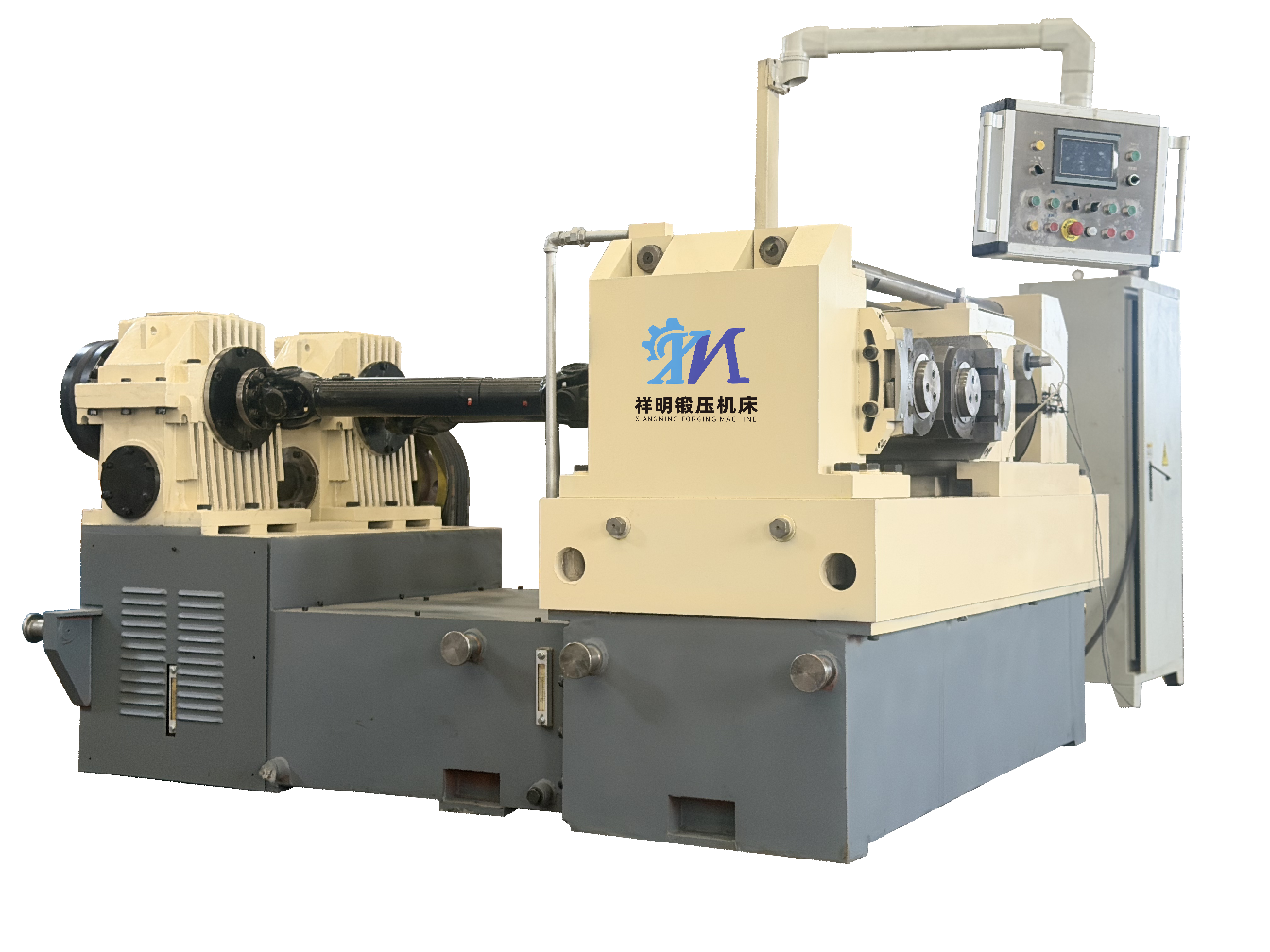

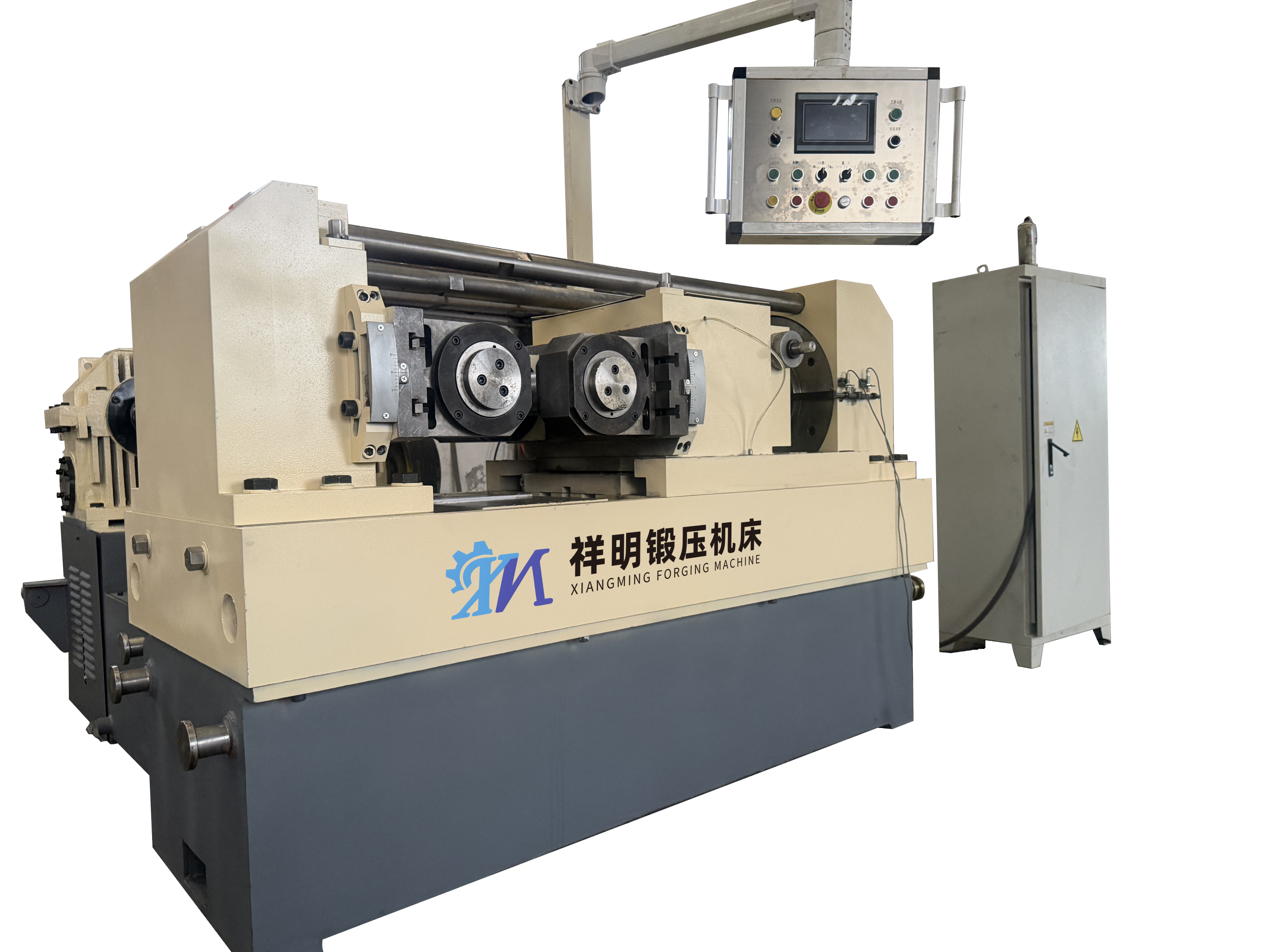

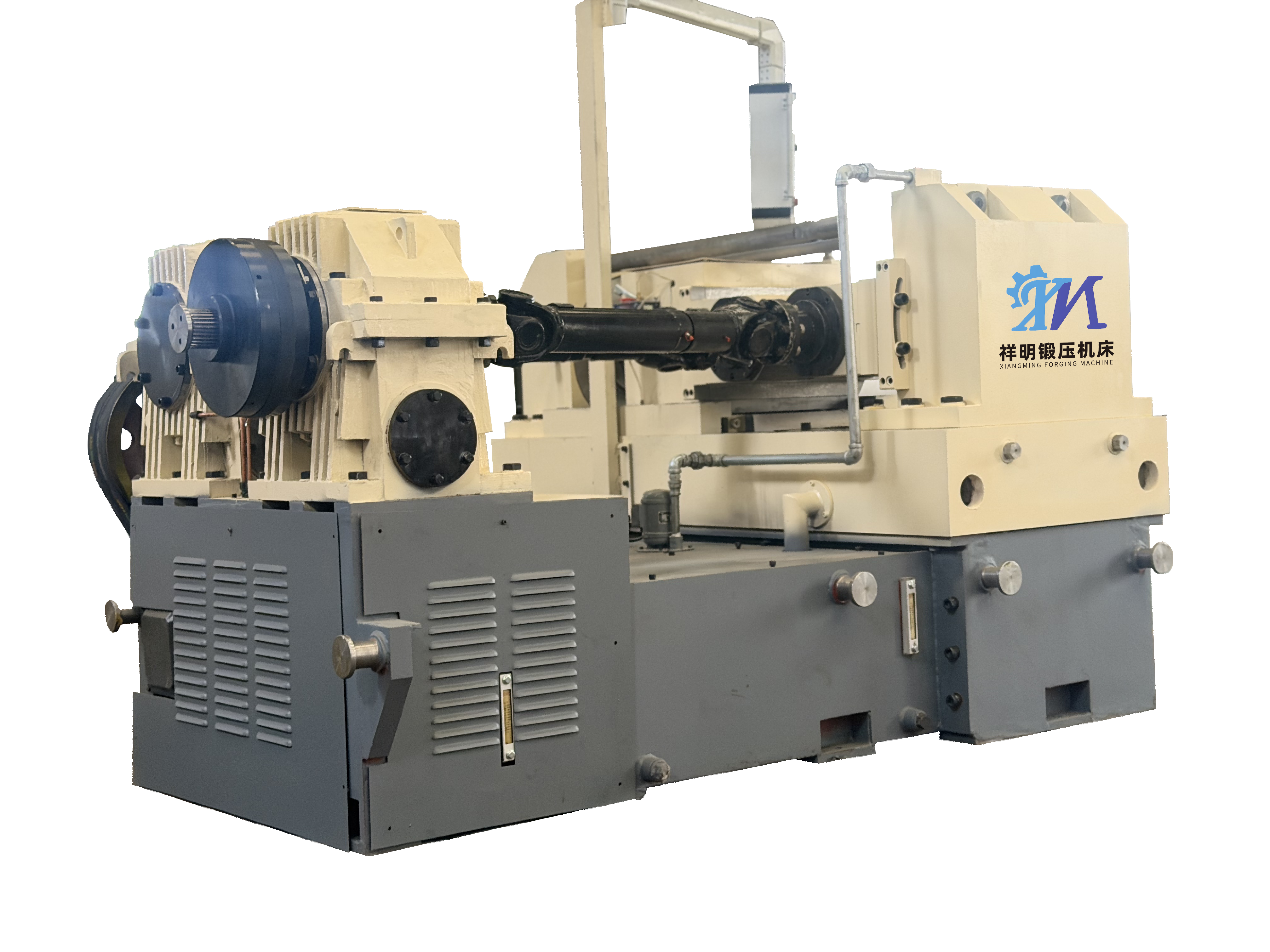

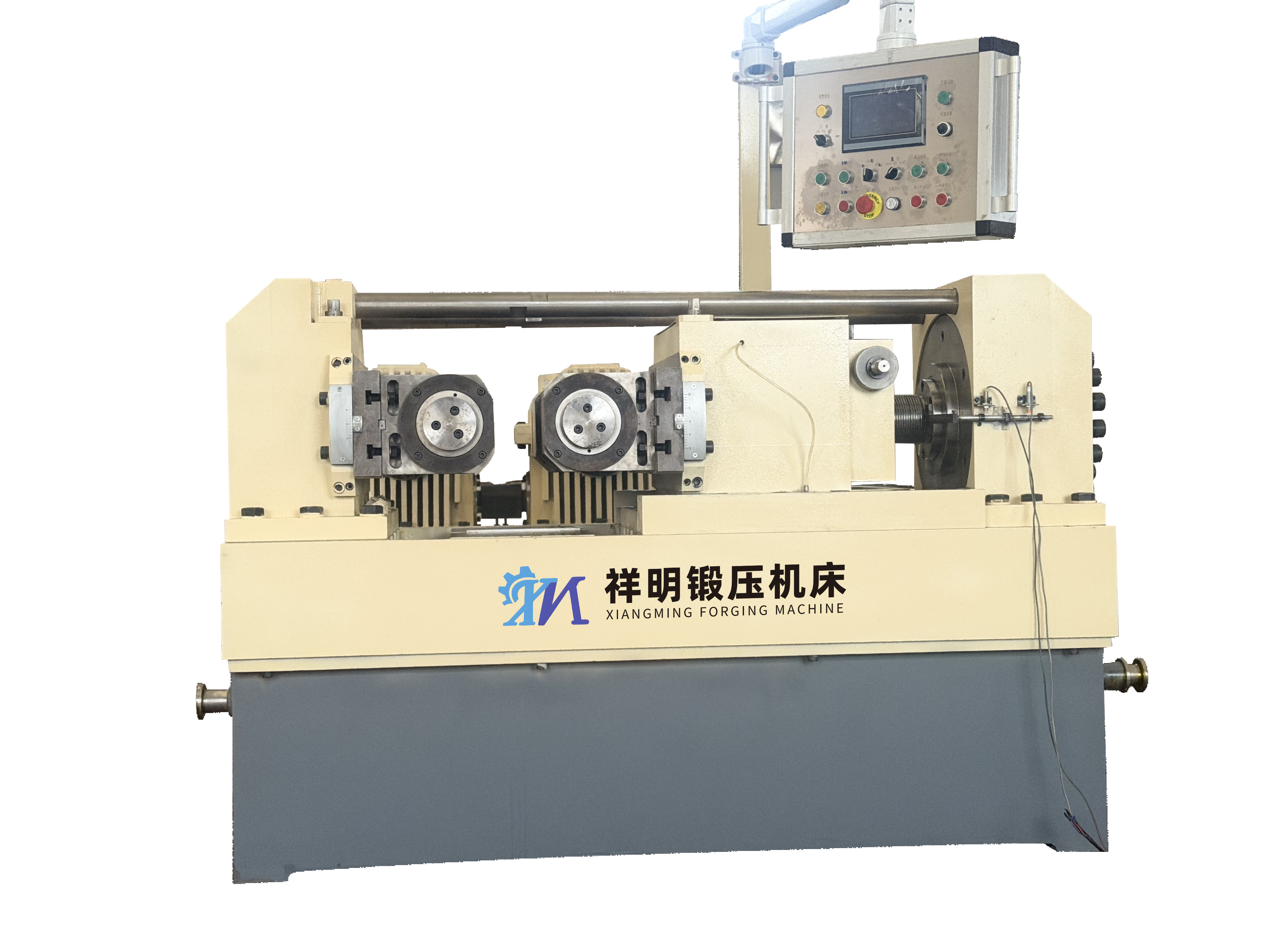

This machine is a high-efficiency, low-consumption, non-cutting machining equipment. It uses rollers mounted on two synchronously rotating spindles to drive the workpiece, utilizing the metal's plasticity to roll-form the workpiece in a cold state. Cold roll-formed workpieces have continuous, fine metal fibers, a strengthened surface, and significantly improved strength.
This machine is fully functional, capable of radial roll forming (parallel spindles), axial roll forming (cross spindles), and re-roll forming (re-rolling when one pass is insufficient). It offers manual, semi-automatic, and fully automatic operating modes.
The machine consists of eleven parts: the machine body, gearbox, drive shaft, fixed base, movable base, feed base, spindle, hydraulic system, electrical system, cooling system, and support frame.
The machine body is composed of upper and lower parts. The upper body is made of cast iron, while the lower body is divided into front and rear sections, both welded from steel plates. The front top surface of the upper body, from left to right, houses the fixed base, movable base, and feed mechanism; the rear top surface houses the gearbox.
The main spindles are mounted on a fixed seat and a movable seat, supported by front and rear bearing seats and fixed to an adjusting plate. Rollers can be placed between the two bearing seats or cantilevered at the front end of the bearing seats.
The movable seat section is equipped with a rectangular sliding guide rail and a mechanism for adjusting the center distance between the two main spindles. Under hydraulic pressure, the hydraulic piston of the feed mechanism drives the movable spindle seat to perform linear reciprocating motion via a lead screw, thereby realizing the machine's feed rolling and retraction.
